- Size: 51m*31m*29m
- Place of Origin: Taian
- Brand Name: HONGJIAN
- Model Number: LB2000
- Weight: 200000.000 kg

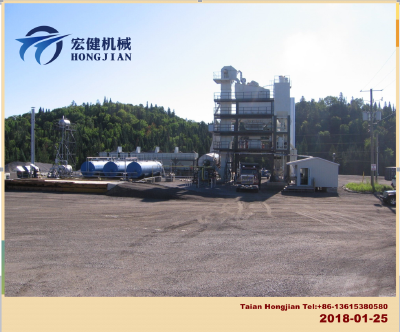

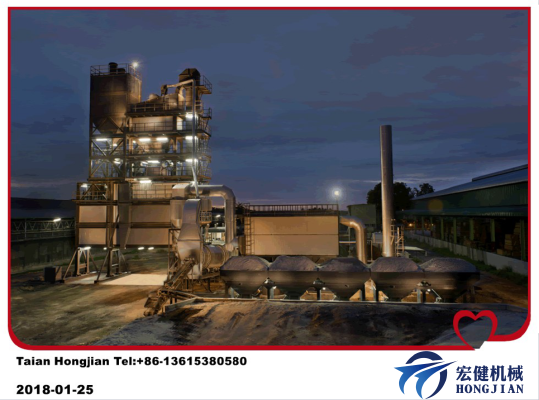

specification of Asphalt Mixing Plant LB2000
No. | Description | Qty.(set) |
01 | 1.1 Batching hopper: 5 bins with each hopper capacity 8 m3 1.2 Belt feeder: 5 units with each unit feeding capacity: 100t/h 1.3 Vibrator : 2units with each vibrating power: 0.16 KW 1.4 Belt conveyor: 1 set with capacity 200 t/h, motor power: 5.5 kw | 1 |
02 | Feeding belt conveyor with capacity 200 t/h | 1 |
03 | 3.1 Size: 2.2m (diameter) ×9.0m (length) 3.2 Drying drum inclination inclined angle: 5º 3.3 Drying drum revolving speed: 7.7rpm 3.4 Drying drum drive motor: 15kW*4 units America REXNORD reducer 3.5 drum heat insulation: 50mm mineral wool covered with stainless steel | 1 |
04 | 4.1 Burner : Automatic control burner 4.2 Fuel: oil or Gas | 1 |
05 | Primary filter: cyclone primary filter | |
06 | Secondary filter: 560m2 cleaning area bag filter with America NOMEX bag Working temperature: 100℃~175℃ / Maximum temperature: 204℃ Dust rejection: <100mg/Nm3 (or water dust collector) | |
07 | hot aggregate elevator: capacity 220 t/h | 1 |
08 | import filler silo: volume 30 m3 (with Recycle filler silo) | 1 |
09 | UK technology vibrating screen: 5 layers with capacity 180 t/h | 1 |
10 | hot aggregate storage bin: 5 units, the total volume is 37 M³ | 1 |
11 | weighing devices: weighing unit for powder, aggregate and bitumen | 1 |
13 | UK technology mixer: Capacity: 2000 kgs/batch, motor power: 37KW*2 units | 1 |
14 | Asphalt supply system and heating system: 30 tons bitumen tanks (quantity according buyer requirement), 600,000 kcal/h oil heating stove | 1 |
15 | Pneumatic control system with America LIEBAO compressor | 1 |
16 | Electric control system : Siemens PLC control, Main electric parts: Simens Automatic and Manual control mode | 1 |
17 | Control room: 12 m2 | 1 |
18 | 80 tons Mixed material storage hopper as optional. | 1 |
