- Size: 34m*30m*18m
- Place of Origin: Taian
- Brand Name: HONGJIAN
- Model Number: LB1500
- Weight: 150000.000 kg

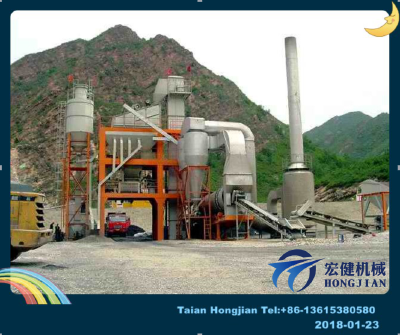

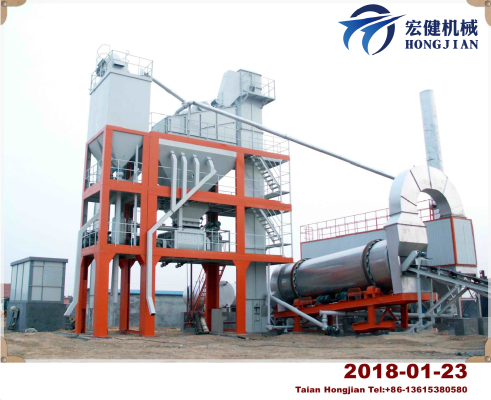

Components of Asphalt Mixing Plant LBJ1500 Asphalt mixing plant
Item | Description | Remarks |
1 | Aggregate batching machine:4 units The bin capacity: 8M³ (flat hopper), total capacity 32M³;
| 1 set |
2 | The feeding belt conveyor | 1 set |
3 | Drying drum Dimension: Æ1900×7730 mm, the installation angel: 4°, the running speed 7.3rpm, rotation running through 4 units electric motor and cycloid reducer, the outer side wrapped with 50mm mineral wool thermal insulation layer with stainless steel. | 1 set |
4 | The burning system: Italy EBICO oil burner Fuel kinds :diesel& heavy oil, coal or gas; with a diesel tank (10t) and a heavy oil tank (10t). With China made Automatic burner ( as optional ) With China made coal burner ( as optional ) | 1 set |
5 | The inertial dust collector: Two-drum vertical cyclone dust collector | 1set |
6 | Bag dust collector ,The bag material:NOMEX America With water filter ( as optional ) | 1set |
7 | Hot aggregate elevator: adopts the double-chain elevating hopper, Hoisting capacity ≥130t/h | 1set |
8 | The vibration screen unit of the hot aggregate: four layers seven segments | 1 set |
9 | The hot aggregate bin:4 bin, 24 m3 totally | 1 set |
10 | The weighing system for the hot aggregate, filler and bitumen | 1 set |
11 | The mixer capacity: 1500 kg/batch; 30kw×2 | 1 set |
12 | The tower frame The main tower with supporting legs, repairing platform and guardrail | 1 set |
13 | The filler supplying system, capacity: 27m3; Capacity:20 tons/hour; Power elevator (as optional) | 1 set |
14 | The hot oil heating system and pipeline the hot oil heater capacity 60×104KCal/h (coal heater as optional) | 1 set |
15 | Asphalt tank and pipeline: 3 units of 25tons tanks (30 tons as optional) | 3 sets |
16 | Pneumatic control system | 1 set |
17 | The electric control system Siemens PLC control ,Main electric parts :Simens or Schneider brand Automatic and Manual control mode | 1 set |
18 | Control room: 5.19m×2.25 m× 2.50 m | 1 set |
19 | Finished asphalt storage silo ( 60tons, 120 tons ) as optional part | 1 set |
Total power:385KW---469KW Total size: 34m*32m*19m(length*width*height) Price arange: (FOB Qingdao China) |
